Experimental observations and posterior updating • powerup

POWERUP predictions can be updated with experimental observations when both describe the same response on a comparable scale:

Prediction distributions -> Experimental observations -> Posterior distributions

prepare_powerup_observations() supports summarized measurements and raw barcode counts.

Start with prediction distributions

After adding predictions to fitted models, request the long output from summarize_predictions():

predictions <- summarize_predictions(models, format = "long")

For posterior updating, the important columns are:

Column	Meaning
`sample`	Prediction sample identifier
`perturbation`	Modeled perturbation
`pred_mean`	Predicted response mean
`pred_sd`	Prediction SD
`response_cutoff`	Cutoff defining the target event
`decreasing`	Whether the target event is at or below the cutoff

calculate_powerup_posteriors() requires these six columns and one unique row per sample-perturbation pair. The long prediction table also includes prediction intervals and prior target-event probabilities for interpretation.

For the compact example below, we will use three prediction distributions with the same required columns:

predictions_example <- data.frame(
  sample = rep("sample_a_prediction", 3),
  perturbation = c("CTNNB1", "ERBB2", "FGFR1"),
  pred_mean = c(0.82, 0.55, 0.22),
  pred_sd = c(0.12, 0.18, 0.10),
  response_cutoff = rep(0.50, 3),
  decreasing = rep(FALSE, 3)
)

Option 1: summarized measurements

Use mode = "measurements" when an experiment has already been summarized as a response estimate with uncertainty.

Required table

With the default column names, the input must look like this:

sample	perturbation	value	sd
sample_a_exp	CTNNB1	0.91	0.06
sample_a_exp	ERBB2	0.42	0.10
sample_a_exp	FGFR1	0.18	0.08

The columns are:

sample: experimental sample identifier;
perturbation: perturbation corresponding to the POWERUP model;
value: observed response mean;
sd: positive finite SD describing uncertainty in that observation.

There must be exactly one selected row for each sample-perturbation pair. Custom column names can be supplied with sample_col, perturbation_col, measurement_value_col, and measurement_sd_col. If one table contains several measurement types, use measurement_type_col together with measurement_type to select one.

measurements <- data.frame(
  sample = c("sample_a_exp", "sample_a_exp", "sample_a_exp"),
  perturbation = c("CTNNB1", "ERBB2", "FGFR1"),
  value = c(0.91, 0.42, 0.18),
  sd = c(0.06, 0.10, 0.08)
)

observations <- prepare_powerup_observations(
  mode = "measurements",
  observations = measurements
)

observations

## # A tibble: 3 × 4
##   sample       perturbation observation_mean observation_sd
##   <chr>        <chr>                   <dbl>          <dbl>
## 1 sample_a_exp CTNNB1                   0.91           0.06
## 2 sample_a_exp ERBB2                    0.42           0.1
## 3 sample_a_exp FGFR1                    0.18           0.08

The result contains the four columns needed for posterior updating: sample, perturbation, observation_mean, and observation_sd.

Option 2: raw barcode counts

Use mode = "barcode_counts" when starting from replicate-level CRISPR barcode counts. POWERUP processes guide counts, maps guides to targets, calibrates target-level measurements using controls, and estimates observation uncertainty by hierarchical bootstrap.

Barcode-count table

The counts table requires at least two barcode rows and exactly one row per unique construct_barcode. An optional construct_id column may also be present. All remaining columns used in the analysis are sample count columns containing finite, non-negative counts, and each sample used in the analysis must have a non-zero total count.

construct_barcode	construct_id	sample_a_T0_R1	sample_a_T0_R2	sample_a_T1_R1	sample_a_T1_R2
barcode_001	guide_001	421	398	176	191
barcode_002	guide_002	305	322	298	281
barcode_003	guide_003	517	490	82	91

Sample names may end in T<number> for timepoint and R<number> for replicate. POWERUP parses these suffixes from the right, so underscores inside the base sample name are preserved. For example:

parse_powerup_barcode_sample_names(c(
  "sample_a_T0_R1",
  "sample_a_T1_R2"
))

## # A tibble: 2 × 5
##   raw_sample     base_sample sample      timepoint replicate
##   <chr>          <chr>       <chr>       <chr>     <chr>
## 1 sample_a_T0_R1 sample_a    sample_a_T0 T0        R1
## 2 sample_a_T1_R2 sample_a    sample_a_T1 T1        R2

analysis_samples uses the canonical sample name without an R# suffix. sample_reference_map is a named character vector whose names are base samples without T# or R# suffixes and whose values are canonical reference samples without an R# suffix:

analysis_samples = "sample_a_T1"
sample_reference_map = c(sample_a = "sample_a_T0")

Guide-reference table

The guide reference requires construct_barcode and gene_symbol. gene_id is optional.

construct_barcode	gene_symbol	gene_id
barcode_001	CTNNB1	1499
barcode_002	ERBB2	2064
barcode_003	FGFR1	2260

The barcode identifiers must match those in the counts table. positive_controls and negative_controls are character vectors of perturbation names matching target names in the guide reference after processing. Calibration requires matched targets from both control classes and at least four control-target rows per replicate, so multiple positive and negative controls should normally be supplied.

The small example below uses two guides each for two positive controls, two negative controls, and one target. Two intergenic guides provide guide-level negative controls. The low-count filter is disabled only to keep the synthetic example small.

genes <- c(
  rep("POS1", 2), rep("POS2", 2), rep("NEG1", 2),
  rep("NEG2", 2), rep("GENE", 2),
  "ONE_INTERGENIC_SITE_A", "ONE_INTERGENIC_SITE_B"
)
barcodes <- paste0("BC", seq_along(genes))

barcode_counts <- data.frame(
  construct_barcode = barcodes,
  sample_a_T0 = c(100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 210),
  sample_a_T1_R1 = c(35, 40, 55, 60, 145, 155, 175, 185, 90, 95, 205, 215),
  sample_a_T1_R2 = c(40, 45, 50, 65, 150, 160, 180, 190, 85, 100, 210, 220)
)

guide_reference <- data.frame(
  construct_barcode = barcodes,
  gene_symbol = genes,
  gene_id = paste0("G", seq_along(genes))
)

barcode_observations <- prepare_powerup_observations(
  mode = "barcode_counts",
  counts = barcode_counts,
  guide_reference = guide_reference,
  analysis_samples = "sample_a_T1",
  sample_reference_map = c(sample_a = "sample_a_T0"),
  positive_controls = c("POS1", "POS2"),
  negative_controls = c("NEG1", "NEG2"),
  guide_negative_control_patterns = "ONE_INTERGENIC_SITE",
  guide_negative_control_fuzzy = TRUE,
  pseudogene_control_regex = "ONE_INTERGENIC_SITE",
  low_count_z_cutoff = -Inf,
  min_guides = 2L,
  bootstrap_repeats = 100L,
  bootstrap_seed = 1L
)

## [powerup][OBSERVATIONS_BOOTSTRAP] sample=sample_a_T1 replicates=2 targets=6 repeats=100

## [powerup][OBSERVATIONS_BOOTSTRAP] sample=sample_a_T1 iteration=100/100

## [powerup][OBSERVATIONS_BOOTSTRAP] sample=sample_a_T1 complete

barcode_observations[, c(
  "sample", "perturbation", "observation_mean", "observation_sd",
  "observation_uncertainty_method"
)]

## # A tibble: 6 × 5
##   sample     perturbation observation_mean observation_sd observation_uncertai…¹
##   <chr>      <chr>                   <dbl>          <dbl> <chr>
## 1 sample_a_… GENE                 1.00e+ 0       4.21e- 5 hierarchical_replicat…
## 2 sample_a_… NEG1                 8.72e-11       1.82e-10 hierarchical_replicat…
## 3 sample_a_… NEG2                 5.94e-12       1.31e-11 hierarchical_replicat…
## 4 sample_a_… ONE_INTERGE…         2.16e-10       3.87e-10 hierarchical_replicat…
## 5 sample_a_… POS1                 1.00e+ 0       1.60e-11 hierarchical_replicat…
## 6 sample_a_… POS2                 1.00e+ 0       1.14e- 6 hierarchical_replicat…
## # ℹ abbreviated name: ¹observation_uncertainty_method

The default output again contains sample, perturbation, observation_mean, and observation_sd, along with barcode-analysis metadata. Set return_details = TRUE when the intermediate guide-, target-, calibration-, and bootstrap-level tables are needed.

By default, target z-score p-values use the two-sided standard-normal distribution. Set target_pvalue_method = "empirical_null" to compare each target z-score with a within-sample null generated by repeatedly resampling negative-control guides and grouping them into synthetic pseudogenes. The empirical null uses bootstrap_repeats and bootstrap_seed, empirical p-values use a finite-sample correction, and FDR is calculated within each sample for either method.

Posterior updating assumes that the predictive prior and experimental observation describe the same underlying response on a comparable scale. Measurement mode requires a positive finite SD. In barcode-count mode, at least two analysis replicates are needed to estimate bootstrap uncertainty; a single replicate can be processed, but it does not provide the positive observation SD required for a Gaussian posterior. Positive and negative controls must both be represented for calibration.

Calculate posterior distributions

Prediction and observation rows are matched by sample and perturbation. If the prediction and experimental sample identifiers differ, provide a named sample_map from prediction sample ID to observation sample ID:

posteriors <- calculate_powerup_posteriors(
  predictions_example,
  observations,
  sample_map = c("sample_a_prediction" = "sample_a_exp")
)

posteriors

## # A tibble: 3 × 15
##   sample       perturbation response_cutoff decreasing prior_mean prior_sd
##   <chr>        <chr>                  <dbl> <lgl>           <dbl>    <dbl>
## 1 sample_a_exp CTNNB1                   0.5 FALSE            0.82     0.12
## 2 sample_a_exp ERBB2                    0.5 FALSE            0.55     0.18
## 3 sample_a_exp FGFR1                    0.5 FALSE            0.22     0.1
## # ℹ 9 more variables: prior_prob_target_event <dbl>, observation_mean <dbl>,
## #   observation_sd <dbl>, posterior_mean <dbl>, posterior_sd <dbl>,
## #   posterior_pi_lower_95 <dbl>, posterior_pi_upper_95 <dbl>,
## #   posterior_prob_target_event <dbl>, posterior_status <chr>

For each matched pair, POWERUP combines the predictive and experimental Gaussian distributions by inverse-variance weighting. A more precise source, represented by a smaller SD, contributes more strongly to the posterior mean. The posterior SD reflects the combined uncertainty.

The main output columns are:

Column	Meaning
`prior_mean`, `prior_sd`	Predictive distribution before the experiment
`prior_prob_target_event`	Prior probability of satisfying the response cutoff
`observation_mean`, `observation_sd`	Experimental distribution
`posterior_mean`, `posterior_sd`	Updated response distribution
`posterior_pi_lower_95`, `posterior_pi_upper_95`	95% posterior interval
`posterior_prob_target_event`	Updated probability of satisfying the response cutoff
`posterior_status`	Whether the Gaussian update was available

The target event follows the model definition: when decreasing = TRUE, it is P(y <= cutoff); otherwise it is P(y >= cutoff).

Visualize an update

plot_posterior() displays the predictive prior, experimental observation, and posterior for one sample and perturbation:

plot_posterior(
  posteriors,
  perturbation = "CTNNB1",
  sample = "sample_a_exp",
  fixed_axis = TRUE
)

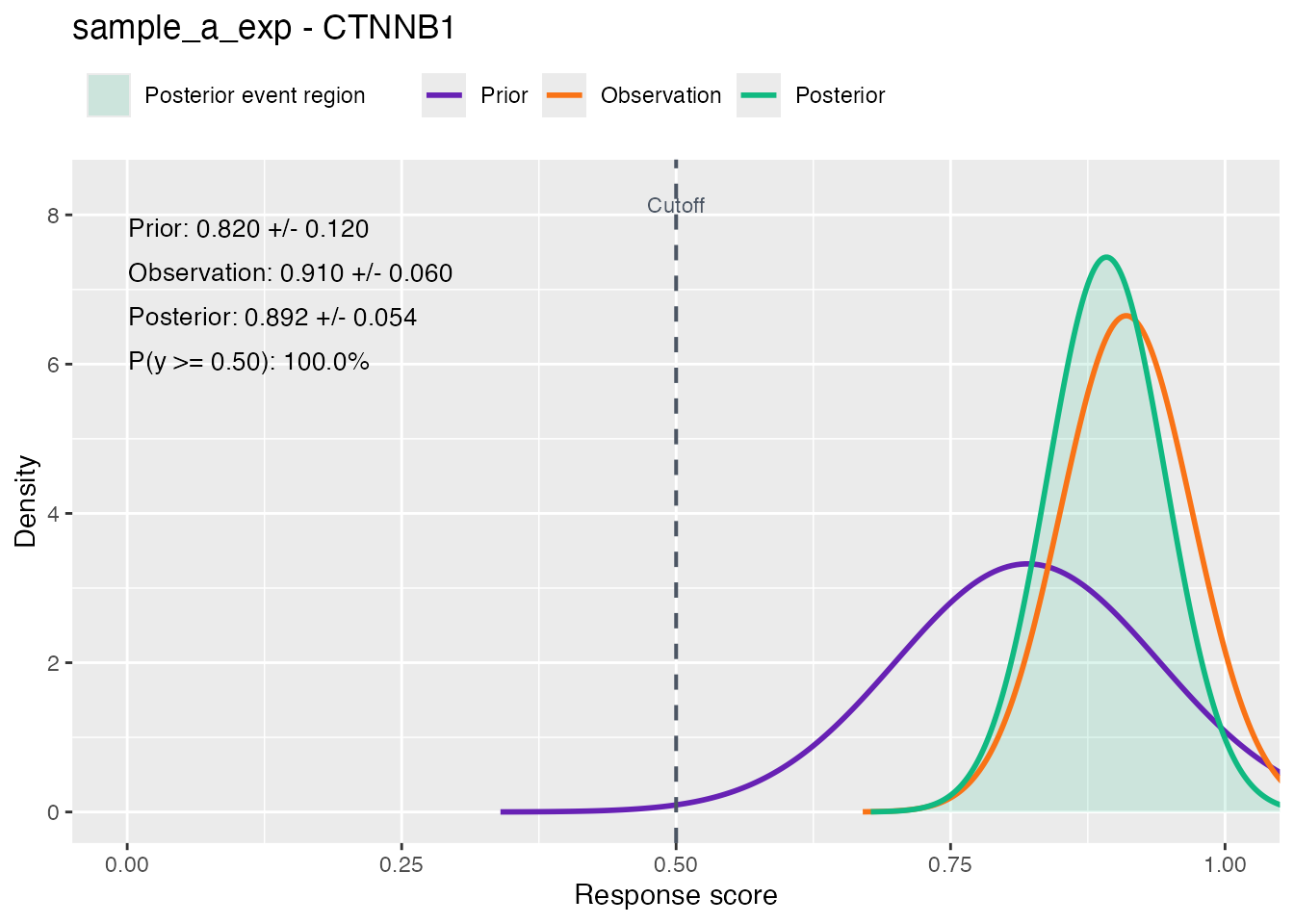

Predictive prior, experimental observation, and posterior distributions for one sample and perturbation, with the target-event tail shaded.

The shaded region represents the posterior probability assigned to the target event.

Next step

See Interpreting POWERUP results for guidance on model performance, prediction uncertainty, and posterior probabilities. For detailed SHAP interpretation, see Explaining POWERUP predictions.
